Sealing four -point contact ball and other section thin wall bearings (X type)

Classification :

Keywords:

Waiting for the section thin -walled series (public system)

Overview of thin wall bearings such as X -shaped sealing four -point contact ball

Four -seal sealing of thin walls and other cross -sealing of the ball bearings are installed on both sides on the basis of standards such as standards such as standards. It can withstand greater stiffness.

Seal four -point contact ball and other section of thin -walled bearing special points

(1) The outer diameter and the inner diameter are relatively small, the diameter of the rolling body is small, and the number is large. Compared with the standard bearing of the same inner diameter, its weight is about 5 % of the standard bearing, and the cross -section area is about 20 % of the standard bearing.
(2) Fixed cross -section bearing: The thin wall is contacting the ball bearings series. The size of the bearing cross section is the same size, and it does not change with the changes in the inner and outer diameter.
(3) It can withstand radial loads, two -way thrust load and overturning torque, which is equivalent to two sets of back -to -back installation -to -back installation. The width is only equivalent to the width of a set of angle contacts.

X -shaped seal four -point contact ball and other section thin wall bearings model size parameters

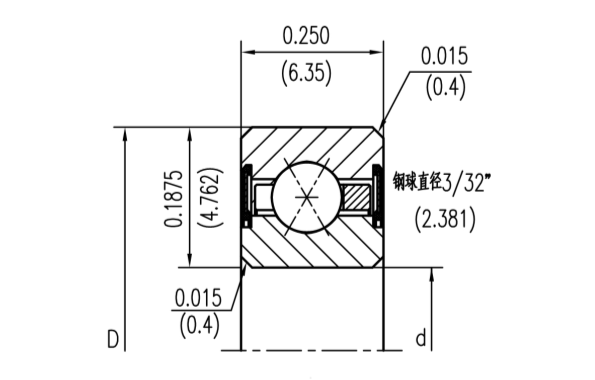

◆JHA SERIES

JHA four -point contact ball sealing thin section bearing model parameters

model	Size（mm)			Load（N)				weight
	d	D	H	Cor	Cr	Coa	Ca	Kg
JHA10XP0	25.400	34.925	6.350	1290	670	3250	1650	0.016
JHA15XP0	38.100	47.625	6.350	1780	800	4450	2050	0.024

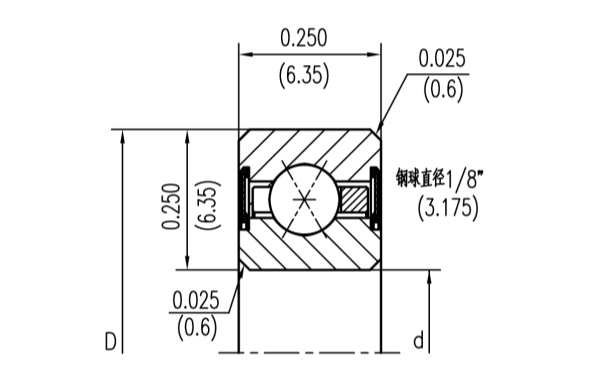

◆JA SERIES

NJA four -point contact ball sealing thin section bearing model parameters

model	Size（mm)			Load（N)				weight
	d	D	H	Cor	Cr	Coa	Ca	Kg
JA020XP0	50.800	63.500	6.350	3020	1420	7600	3510	0.045
JA025XP0	63.500	76.200	6.350	3690	1600	9290	4050	0.054
JA030XP0	76.200	88.900	6.350	4400	1820	10980	4490	0.064
JA035XP0	88.900	101.600	6.350	5070	2000	12670	4930	0.077
JA040XP0	101.600	114.300	6.350	5730	2130	14310	5380	0.086
JA042XP0	107.950	120.650	6.350	6090	2220	15160	5600	0.091
JA045XP0	114.300	127.000	6.350	6400	2310	16000	5820	0.095
JA047XP0	120.650	133.350	6.350	6760	2400	16850	6000	0.100
JA050XP0	127.000	139.700	6.350	7070	2490	17690	6220	0.104
JA055XP0	139.700	152.400	6.350	7780	2620	19380	6580	0.113
JA060XP0	152.400	165.100	6.350	8450	2800	21070	6980	0.127
JA065XP0	165.100	177.800	6.350	9110	2930	22760	7330	0.136

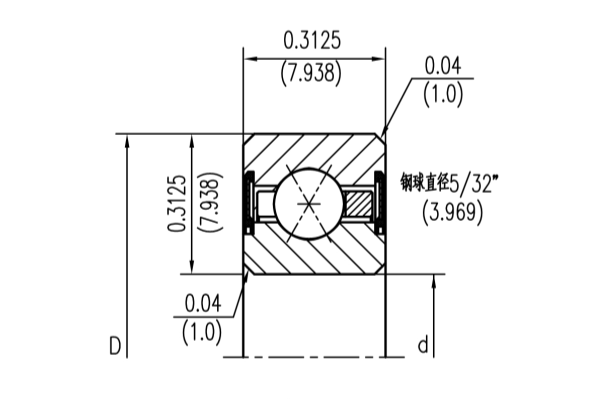

◆JB SERIES

JB four -point contact ball sealing thin cross section bearing model parameters

model	Size（mm)			Load（N)				weight
	d	D	H	Cor	Cr	Coa	Ca	Kg
JB020XP0	50.800	66.675	7.938	4130	2000	10400	5020	0.068
JB025XP0	63.500	79.375	7.938	5070	2310	12620	5730	0.086
JB030XP0	76.200	92.075	7.938	5960	2580	14890	6400	0.100
JB035XP0	88.900	104.775	7.938	6850	2800	17160	7070	0.122
JB040XP0	101.600	117.475	7.938	7780	3070	19430	7650	0.136
JB042XP0	107.950	123.825	7.938	8130	3160	20310	7910	0.141
JB045XP0	114.300	130.175	7.938	8670	3290	21690	8220	0.154
JB047XP0	120.650	136.525	7.938	9020	3380	22580	8450	0.159
JB050XP0	127.000	142.875	7.938	9560	3510	23910	8800	0.168
JB055XP0	139.700	155.575	7.938	10490	3730	26180	9340	0.181
JB060XP0	152.400	168.275	7.938	11380	3960	28450	9870	0.200
JB065XP0	165.100	180.975	7.938	12270	4130	30720	10400	0.213

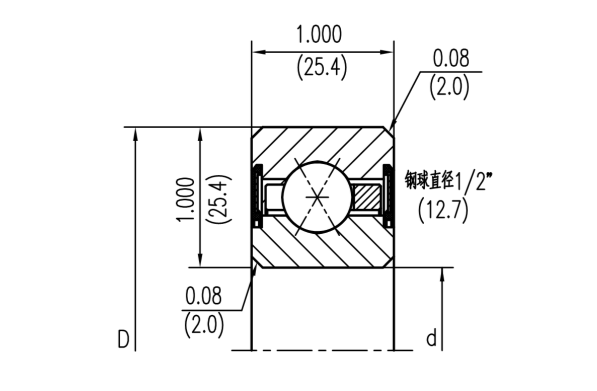

◆JG SERIES

JG four -point contact ball sealing thin cross section bearings model parameters

model	Size（mm)			Load（N)				weight
	d	D	H	Cor	Cr	Coa	Ca	Kg
JG120XP0	304.800	355.600	25.400	94860	37830	237140	94590	4.218
JG140XP0	355.600	406.400	25.400	109440	41610	273630	152950	4.899
JG160XP0	406.400	457.200	25.400	124060	45250	310130	113130	5.579
JG180XP0	457.200	508.000	25.400	138640	48720	346620	121840	6.214
JG200XP0	508.000	558.800	25.400	153220	52100	383070	130240	7.168

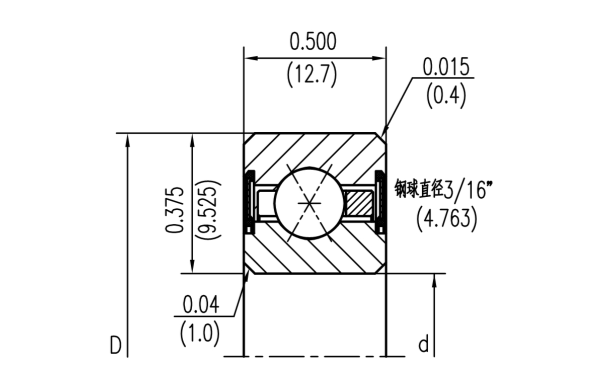

◆JU SERIES

JU four -point contact ball sealing thin cross section bearing model parameters

model	Size（mm)			Load（N)				weight
	d	D	H	Cor	Cr	Coa	Ca	Kg
JU040XP0	101.600	120.650	12.700	9340	3910	23380	9820	0.249
JU042XP0	107.950	127.000	12.700	9870	4090	24710	10180	0.263
JU045XP0	114.300	133.350	12.700	10400	4220	26050	10580	0.277
JU047XP0	120.650	139.700	12.700	10940	4360	27380	10940	0.295
JU050XP0	127.000	146.050	12.700	11510	4490	28720	11290	0.308
JU055XP0	139.700	158.750	12.700	12580	4800	31380	11960	0.336
JU060XP0	152.400	171.450	12.700	13650	5070	34050	12620	0.367
JU065XP0	165.100	184.150	12.700	14710	5330	36760	13290	0.395
JU070XP0	177.800	196.850	12.700	15780	5560	39430	13910	0.422
JU075XP0	190.500	209.550	12.700	16850	5820	42090	14540	0.449
JU080XP0	203.200	222.250	12.700	17910	6050	44760	15160	0.481
JU090XP0	228.600	247.650	12.700	20050	6530	50100	16310	0.535
JU100XP0	254.000	273.050	12.700	22180	6980	55430	17470	0.594
JU110XP0	279.400	298.450	12.700	24310	7420	60810	18580	0.649
JU120XP0	304.800	323.850	12.700	26450	7870	66140	19650	0.708
