RE type Cross roller bearing

Classification :

manager@gznbearings.com

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

Cross roller bearing

Product Details

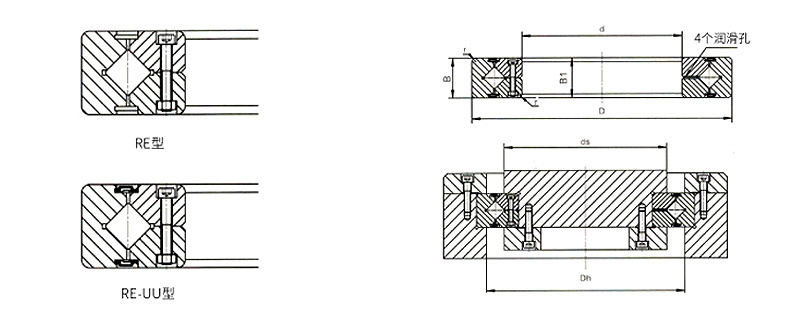

RE(outer ring, whole inner ring fission)

Nominal model number	Main dimensions (mm)					Shaft shoulder size		Basic load rating radial kN		Kg
Nominal model number	d	D	Dpw	BB1	rmin	ds	Dh	Cr	Cor	Kg
RE2008	20	36	29	8	0.5	23.5	30.5	3.23	3.1	0.04
RE2508	25	41	34	8	0.5	28.5	35.5	3.63	3.83	0.05
RE3010	30	55	43.5	10	0.6	37	47	7.35	8.36	0.12
RE3510	35	60	48.5	10	0.6	41	51.5	7.64	9.12	0.13
RE4010	40	65	53.5	10	0.6	47.5	58	8.33	10.6	0.16
RE4510	45	70	58.5	10	0.6	51	61.5	8.62	11.3	0.17
RE5013	50	80	66	13	0.6	57.5	72	16.7	20.9	0.27
RE6013	60	90	76	13	0.6	68	82	18	24.3	0.3
RE7013	70	100	86	13	0.6	78	92	19.4	27.7	0.35
RE8016	80	120	101.4	16	0.6	91	111	30.1	42.1	0.7
RE9016	90	130	112	16	1	98	118	31.4	45.3	0.75
RE10016	100	140	121.1	16	1	109	129	31.7	48.6	0.83

Nominal model number	Main dimensions (mm)					Shaft shoulder size		Basic load rating radial kN		Kg
Nominal model number	d	D	Dpw	BB1	rmin	ds	Dh	Cr	Cor	Kg
RE10020	100	150	127	20	1	113	133	33.1	50.9	1.45
RE11012	110	135	123.3	12	0.6	117	127	12.5	24.1	0.4
RE11015	110	145	129	15	0.6	122	136	23.7	41.5	0.75
RE11020	110	160	137	20	1	120	140	34	54	1.56
RE12016	120	150	136	16	0.6	127	141	24.2	43.2	0.72
RE12025	120	180	152	25	1.5	133	164	66.9	100	2.62
RE13015	130	160	146	15	0.6	137	152	25	46.7	0.72
RE13025	130	190	162	25	1.5	143	174	69.5	107	2.82
RE14016	140	175	160	16	1	147	162	25.9	50.1	1
RE14025	140	200	172	25	1.5	154	185	74.8	121	2.96
RE15013	150	180	166	13	0.6	158	172	27	53.5	0.68
RE15025	150	210	182	25	1.5	164	194	76.8	128	3.16

Nominal model number	Main dimensions (mm)					Shaft shoulder size		Basic load rating radial kN		Kg
Nominal model number	d	D	Dpw	BB1	rmin	ds	Dh	Cr	Cor	Kg
RE15030	150	230	192	30	1.5	173	210	100	156	5.3
RE16025	160	220	192	25	1.5	173	204	81.7	135	3.14
RE17020	170	220	196.1	20	1.5	184	198	29	62.1	2.21
RE18025	180	240	210	25	1.5	195	225	84	143	3.44
RE19025	190	240	219	25	1	202	222	41.7	82.9	2.99
RE20025	200	260	230	25	2	215	245	84.2	157	4
RE20030	200	280	240	30	2	221	258	114	200	6.7
RE20035	200	295	247.7	35	2	225	270	151	252	9.6
RE22025	220	280	250.1	25	2	235	265	92.3	171	4.1
RE24025	240	300	272.5	25	2.5	256	281	68.3	145	4.5
RE25025	250	310	280.9	25	2.5	268	293	69.3	150	5
RE25030	250	330	287.5	30	2.5	269	306	126	244	8.1

Nominal model number	Main dimensions (mm)					Shaft shoulder size		Basic load rating radial kN		Kg
Nominal model number	d	D	Dpw	BB1	rmin	ds	Dh	Cr	Cor	Kg
RE25040	250	355	300.7	40	2.5	275	326	195	348	14.8
RE30025	300	360	332	25	2.5	319	344	75.5	178	5.9
RE30035	300	395	345	35	2.5	322	368	183	367	13.4
RE30040	300	405	351.6	40	2.5	326	377	212	409	17.2
RE35020	350	400	376.6	20	2.5	363	383	54.1	143	3.9
RE40035	400	480	440.3	35	2.5	422	459	156	370	14.5
RE40040	400	510	453.4	40	2.5	428	479	241	531	23.5
RE45025	450	500	476.6	25	1	464	484	61.7	182	6.6
RE50025	500	550	526.6	25	1	514	534	65.5	201	73
RE50040	500	600	548.8	40	2.5	526	572	239	607	26
RE50050	500	625	561.6	50	2.5	536	587	267	653	41.7
RE60040	600	700	650	40	3	672	637	264	721	29

Product advantages

1.Rigorous material selection
Using high-quality GCR15 high-carbon bearing steel, it has high and uniform hardness, good wear resistance and higher contact fatigue performance after quenching.
2.Ultra high precision
The precision reaches the micron level, the surface is finely ground, the raceway is super-precision treated, and the dimensional accuracy and rotation accuracy are professionally tested.

3.Small size, large load capacity
The cross-roller structure allows this type of bearing to carry forces in all directions, including axial, radial and overturning moments, and is 3 to 4 times more rigid than traditional bearings.

Notes to buyers

Shipping time
If the spot is photographed before 5 o'clock on the same day, it will be shipped immediately. Unless otherwise notified, the communication time shall prevail.

Shipping express
By default, our store will send YTO Express for large items, and ZTO Express. Please contact customer service for designated express delivery.

About the invoice
Our store can issue ordinary value-added tax invoices free of charge, and special value-added tax invoices can be issued for more than 2,000 yuan.

After-sales service
This store supports 7 days no reason to return and exchange goods, except for customized products and does not affect the second sale) has purchased shipping insurance for buyers to ensure that returns are worry-free.
