RV reducer dedicated bearing main bearing

Classification :

Keywords:

RV Reducer Bearing

RV reducer dedicated bearing-hypotonal bearing (thin-wall corner contact ball bearings)

The single -row angle contact ball bearings are composed of an outer ring, an inner ring, an overall holder, and a set of precision steel balls. The contact angle is 40 °. The bearings can also bear the axial load of the radial load and a direction. Pure bearing loads in a single direction, this type of bearing is often used in pairs in the back -to -back configuration; the cut section of the bearings is small, saving the installation space of the host. It is mainly applied to the main support site of the RV decelerator.+

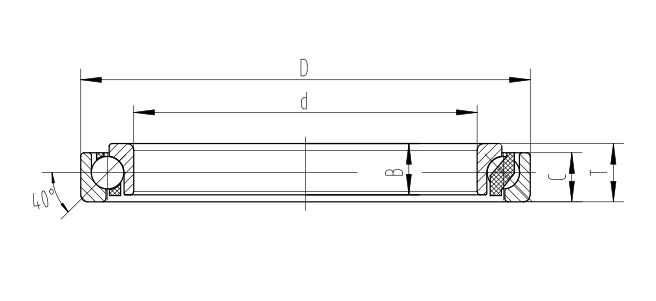

Bearing model	Appearance					Basic fixed load
	d	D	B	C	H	Cr	Cor
	Uniter： mm					KN	KN
RV—20E	89	114	10	9	13	14.6	26.2
RV—40E	115	145	15	11	15	27	33
RV—80E	131	165	13	11	15	29	55
RV—110E	145	175	15	15	16	68	34
RV—160E	168	205	19	15.4	20	49	94
RV—320E	200	250	23	20.5	24	83.9	115.8
RV—10E	97	120	13	12	13	22.7	26
RV—50E	159	191	16.4	12.4	16	36.2	50.9
RV-120E	182	214	17	15	17	40	58
RV-320CA	320	383	29.8	22.7	30	130.8	219.8
