Angle contact ball and other section thin wall bearings (Type A)

Introduction to the section thin wall bearings
The section of the section thin wall bearing consists of seven open series and five seal series. There are three types of open series: radial contact C, angle contact A and four -point contact X. The advantages of thin -wall and other section of bearing: The thin wall bearings realize the extremely thin bearing section and realize the miniaturization and lightweight of the product. The diversity of the product has expanded its scope of use.

 Product characteristics of the thin -wall bearings such as angle contact balls
In order to obtain low friction torque, high rigidity and good rotation accuracy use small steel balls with small outer diameter. The use of mid -air shafts ensures light weight and wiring space.

The main purpose of thin wall and other section bearing
Step motor, medical equipment, office equipment, testing equipment, deceleration devices, robots, optical imaging equipment, rotating encoder.

The cross -section bearing such as thin walls is also called thin -walled ring bearing, which has high precision, very quiet characteristics and strong bearing capacity. The section of thin -walled bearing can be a deep groove ball bearings. Four points of contact with the ball bearings, angle contact ball bearings, and thin -walled bearings with the same cross -section. The cross section is mostly square. In these series, even with a larger axis diameter and bearing holes, the section remains unchanged. Therefore, these bearing is called thin -walled bearing such as thin walls. It is this characteristic that the section bearing such as thin walls in the standard ISO series is different from the traditional bearing.

Therefore, you can choose a larger cross -section without changing the diameter of the axis and use the bearing with high bearing capacity. Waiting for the section thin -walled bearing can be designed very lightly, only a small space.

Model parameters of the thin -wall bearings such as angle contact balls

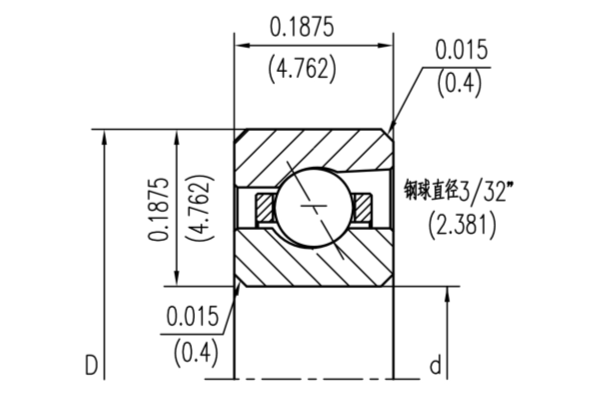

KA angle contact ball and other section of thin -wall bearings model parameters

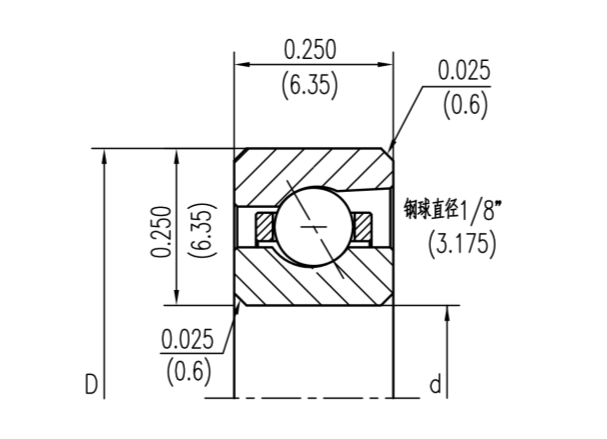

KB angle contact ball and other section of thin -wall bearings model parameters

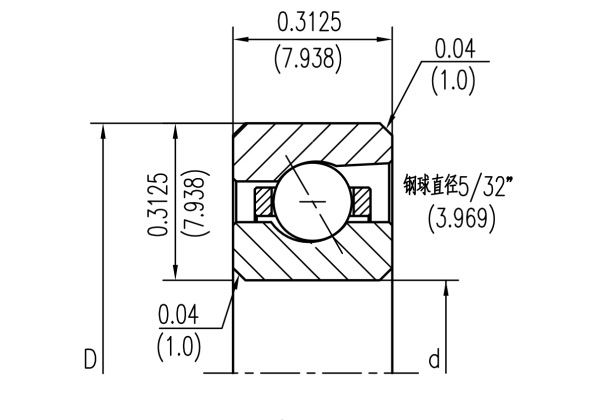

KC angle contact ball and other section of thin -wall bearings model parameters

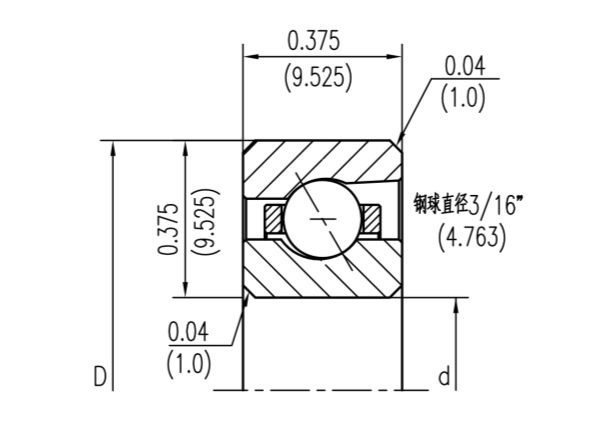

KD angle contact ball and other section of thin -wall bearings model parameters

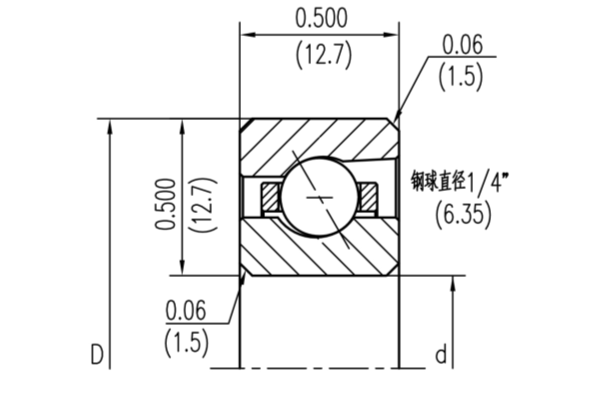

KF angle contact ball and other section of thin -wall bearings model parameters

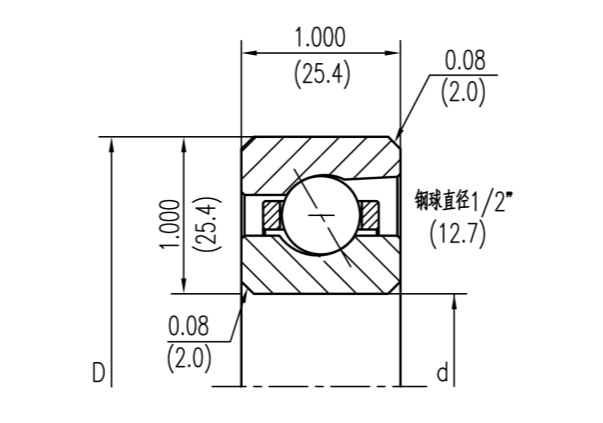

KG angle contact ball and other section of thin -wall bearings model parameters
