CRBH type Cross roller bearing

Classification :

manager@gznbearings.com

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

Cross roller bearing

Product Details

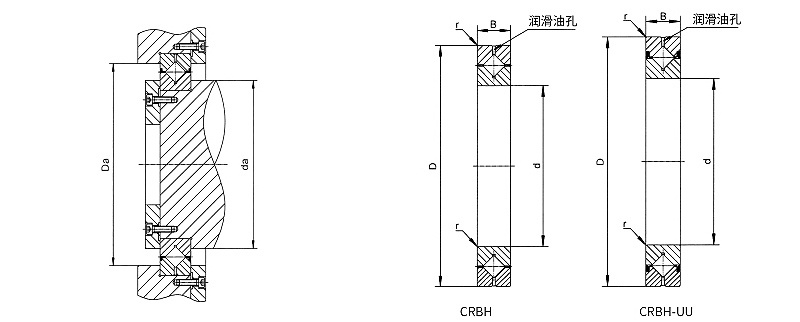

CRBH type (inside and outside the circle of the whole/ultra-thin)

Nominal model number	Main dimensions (mm)				Shaft shoulder size		Basic load rating (radial) kN		Kg
Nominal model number	d	D	B	rmin	ds	Dh	Cr	Cor	Kg
CRBH208	20	36	8	0.3	24	31	2.9	2.4	0.04
CRBH258	25	41	8	0.3	29	36	3.1	2.8	0.05
CRBH3010	30	55	10	0.3	36.5	48.5	7.6	8.4	0.12
CRBH3510	35	60	10	0.3	41.5	53.5	7.9	9.1	0.13
CRBH4010	40	65	10	0.3	46.5	58.5	8.6	10.6	0.15
CRBH4510	45	70	10	3	51.8	63.5	8.9	11.3	0.16
CRBH5013	50	80	13	0.6	56	74	17.3	20.9	0.29
CRBH6013	60	90	13	0.6	66	84	18.8	24.3	0.33
CRBH7013	70	100	13	0.6	76	94	20.1	27.7	0.38
CRBH8016	80	120	16	0.6	88	112	32.1	43.4	0.74
CRBH9016	90	130	16	0.6	98	122	33.1	46.8	0.81
CRBH10020	100	150	20	0.6	110	140	50.9	72.2	1.45

Nominal model number	Main dimensions (mm)				Shaft shoulder size		Basic load rating (radial) kN		Kg
Nominal model number	d	D	B	rmin	ds	Dh	Cr	Cor	Kg
CRBH11020	110	160	20	0.6	120	150	52.4	77.4	1.56
CRBH12025	120	180	25	1	132	168	73.4	108	2.62
CRBH13025	130	190	25	1	142	178	75.9	115	2.82
CRBH14025	140	200	25	1	152	188	81.9	130	2.96
CRBH15025	150	210	25	1	162	198	84.3	138	3.16
CRBH20025	200	260	25	1	212	248	92.3	169	4
CRBH25025	250	310	25	1.5	262	298	102	207	4.97

Product advantages

1.Rigorous material selection
Using high-quality GCR15 high-carbon bearing steel, it has high and uniform hardness, good wear resistance and higher contact fatigue performance after quenching.
2.Ultra high precision
The precision reaches the micron level, the surface is finely ground, the raceway is super-precision treated, and the dimensional accuracy and rotation accuracy are professionally tested.

3.Small size, large load capacity
The cross-roller structure allows this type of bearing to carry forces in all directions, including axial, radial and overturning moments, and is 3 to 4 times more rigid than traditional bearings.

Notes to buyers

Shipping time
If the spot is photographed before 5 o'clock on the same day, it will be shipped immediately. Unless otherwise notified, the communication time shall prevail.

Shipping express
By default, our store will send YTO Express for large items, and ZTO Express. Please contact customer service for designated express delivery.

About the invoice
Our store can issue ordinary value-added tax invoices free of charge, and special value-added tax invoices can be issued for more than 2,000 yuan.

After-sales service
This store supports 7 days no reason to return and exchange goods, except for customized products and does not affect the second sale) has purchased shipping insurance for buyers to ensure that returns are worry-free.

Cross roller bearing
