Four -point contact ball and other section thin wall bearings (X type)

The section thin -walled bearing is composed of seven open series and five seal series. There are three types of opening series: radial contact C, angle contact type A, and four -point contact X. Advantages of cross -sectional bearing such as thin walls: thin -walled bearings realize extremely thin bearing section surfaces, and also realize the miniaturization and lightweight of the product. The diversity of the product has extended its scope of use.
The characteristics of section bearing products such as thin walls: In order to obtain the low friction torque, high rigidity, and good return accuracy of the bearings, a small outer diameter steel ball is used. The use of mid -air shafts ensures space for lightweight and wiring. The thin -walled 6700 and 6800 series include various dust cover forms, forms of flange, stainless steel form, wide -amplifier forms, etc., with complete varieties.
The main use of section bearing such as thin walls: step motor, medical device, office equipment, detection instruments, deceleration. Variable gear device, robot, optics. Image equipment, rotating encoder.
The cross -section bearing such as thin walls is also called thin -walled ring bearing. It is highly accurate, very quiet, and has a strong carrying capacity. The thin -walled ring bearing can be deep groove ball bearings, four -point contact bearings, angle contact ball bearings, thin -walled bearing horizontal cross sections are mostly square. In these series, even the larger axis diameter and bearing holes, the cross section remains unchanged. These bearing is therefore called an alien.

Four -point contact ball and other section of thin wall bearing model parameters

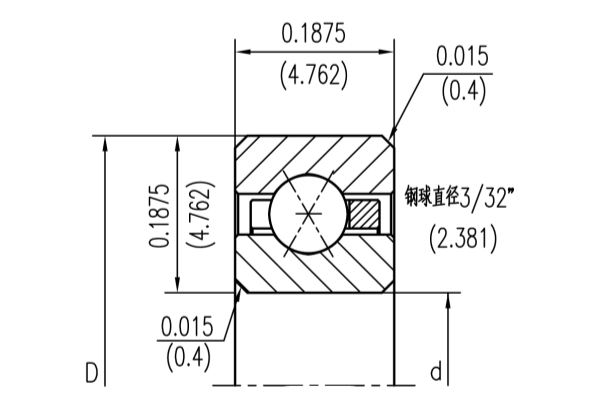

◆KAA   SERIES
model	size（mm)			Load（P)				weight
	d	D	H	Cor	Cr	Coa	Ca	Kg
KAA10XP0	25.4	34.925	4.762	1290	670	3250	1650	0.012
KAA15XP0	38.1	47.625	4.762	1780	800	4450	2050	0.018
KAA17XP0	44.45	53.975	4.762	3100	2950			0.02
◆KA   SERIES
model	size（mm)			Load（P)				weight
	d	D	H	Cor	Cr	Coa	Ca	Kg
KA020XP0	50.8	63.5	6.35	1650	1420	7600	3510	0.048
KA025XP0	63.5	76.2	6.35	3690	1600	9290	4050	0.059
KA030XP0	76.2	88.9	6.35	4400	1820	10980	4490	0.068
KA035XP0	88.9	101.6	6.35	5070	2000	12670	4930	0.082
KA040XP0	101.6	114.3	6.35	5730	2130	14310	5380	0.09
KA042XP0	107.95	120.65	6.35	6090	2220	15160	5600	0.095
KA045XP0	114.3	127	6.35	6400	2310	16000	5820	0.1
KA047XP0	120.65	133.35	6.35	6760	2400	16850	6000	0.104
KA050XP0	127	139.7	6.35	7070	2490	17690	6220	0.109
KA055XP0	139.7	152.4	6.35	7780	2620	19380	6580	0.118
KA060XP0	152.4	165.1	6.35	8450	2800	21070	6980	0.13
KA065XP0	165.1	177.8	6.35	9110	2930	22760	7330	0.14
KA070XP0	177.8	190.5	6.35	9780	3070	24450	7690	0.15
KA075XP0	190.5	203.2	6.35	10450	3200	26140	8050	0.16
KA080XP0	203.2	215.9	6.35	11110	3330	27830	8400	0.172
KA090XP0	228.6	241.3	6.35	12490	3600	31200	9070	0.2
KA100XP0	254	266.7	6.35	13820	3870	34580	9690	0.227
KA110XP0	279.4	292.1	6.35	15160	4130	37960	10310	0.236
KA120XP0	304.8	317.5	6.35	16540	4360	41340	10890	0.254

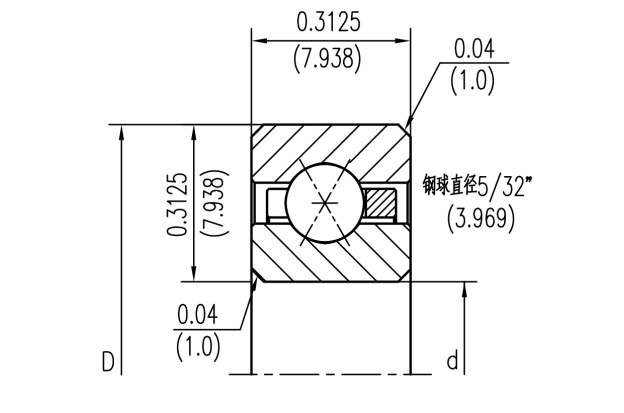

◆KB SERIES
model	size（mm)			Load（P)				weight
	d	D	H	Cor	Cr	Coa	Ca	Kg
KB020XP0	50.8	66.675	7.938	4130	2000	10400	5020	0.073
KB025XP0	63.5	79.375	7.938	5070	2310	12620	5730	0.091
KB030XP0	76.2	92.075	7.938	5960	2580	14890	6400	0.109
KB035XP0	88.9	104.775	7.938	6850	2800	17160	7070	0.125
KB040XP0	101.6	117.475	7.938	7780	3070	19430	7650	0.14
KB042XP0	107.95	123.825	7.938	8130	3160	20310	7910	0.147
KB045XP0	114.3	130.175	7.938	8670	3290	21690	8220	0.16
KB047XP0	120.65	136.525	7.938	9020	3380	22580	8450	0.163
KB050XP0	127	142.875	7.938	9560	3510	23910	8800	0.172
PKB055XP0	139.7	155.575	7.938	10490	3730	26180	9340	0.186
KB060XP0	152.4	168.275	7.938	11380	3960	28450	9870	0.205
KB065XP0	165.1	180.975	7.938	12270	4130	30720	10400	0.216
KB070XP0	177.8	193.675	7.938	13200	4360	32980	10890	0.232
KB075XP0	190.5	206.375	7.938	14090	4530	35200	11380	0.25
KB080XP0	203.2	219.075	7.938	14980	4760	37470	11870	0.262
KB090XP0	228.6	244.475	7.938	16800	5110	42000	12800	0.3
KB100XP0	254	269.875	7.938	18620	5470	46500	13690	0.331
KB110XP0	279.4	295.275	7.938	20400	5820	51030	14580	0.36
KB120XP0	304.8	320.675	7.938	22230	6180	55560	15420	0.39
KB140XP0	355.6	371.475	7.938	25830	6800	64590	17070	0.476
KB160XP0	406.4	422.275	7.938	29430	7420	73610	18630	0.544
KB180XP0	457.2	473.075	7.938	33070	8050	82630	20090	0.612
KB200XP0	508	523.875	7.938	36670	8620	91660	21560	0.68

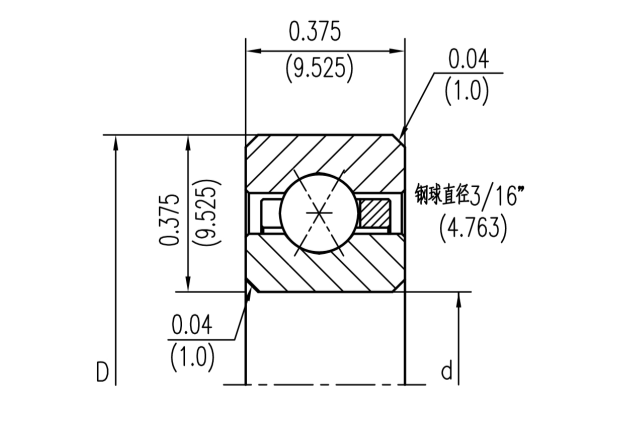

◆KX SERIES
model	size（mm)			Load（P)				weight
	d	D	H	Cor	Cr	Coa	Ca	Kg
KX040XP0	101.6	120.65	9.525	9340	3910	23380	9820	0.204
KX042XP0	107.95	127	9.525	9870	4090	24710	10180	0.213
KX045XP0	114.3	133.35	9.525	10400	4220	26050	10580	0.225
KX047XP0	120.65	139.7	9.525	10940	4360	27380	10940	0.235
KX050XP0	127	146.05	9.525	11510	4490	28720	11290	0.263
KX055XP0	139.7	158.75	9.525	12580	4800	31380	11960	0.268
KX060XP0	152.4	171.45	9.525	13650	5070	34050	12620	0.295
KX065XP0	165.1	184.15	9.525	14710	5330	36760	13290	0.312
KX070XP0	177.8	196.85	9.525	15780	5560	39430	13910	0.34
KX075XP0	190.5	209.55	9.525	16850	5820	42090	14540	0.36
KX080XP0	203.2	222.25	9.525	17910	6050	44760	15160	0.387
KX090XP0	228.6	247.65	9.525	20050	6530	50100	16310	0.45
KX100XP0	254	273.05	9.525	22180	6980	55430	17470	0.481
KX110XP0	279.4	298.45	9.525	24310	7420	60810	18580	0.526
KX120XP0	304.8	323.85	9.525	26450	7870	66140	19650	0.567
KX140XP0	355.6	374.65	9.525	30720	8670	76810	21740	0.689
KX160XP0	406.4	425.45	9.525	35030	9470	87520	23690	0.785
KX180XP0	457.2	476.25	9.525	39290	10220	98190	25600	0.88
KX200XP0	508	527.05	9.525	43560	10980	108900	27430	0.98
KX250XP0	635	654.05	9.525
◆KD   SERIES
model	size（mm)			Load（P)				weight
	d	D	H	Cor	Cr	Coa	Ca	Kg
KD040XP0	101.6	127	12.7	13690	6270	34230	15650	0.366
KD042XP0	107.95	133.35	12.7	14180	6400	35470	16000	0.386
KD045XP0	114.3	139.7	12.7	15200	6710	38010	16760	0.405
KD047XP0	120.65	146.05	12.7	15690	6850	39290	17160	0.426
KD050XP0	127	152.4	12.7	16710	7160	41830	17870	0.454
KD055XP0	139.7	165.1	12.7	18230	7560	45610	18940	0.485
KD060XP0	152.4	177.8	12.7	19780	8000	49430	19960	0.526
KD065XP0	165.1	190.5	12.7	21290	8400	53210	20980	0.566
KD070XP0	177.8	203.2	12.7	22800	8800	57030	21960	0.606
KD075XP0	190.5	215.9	12.7	24310	9160	60810	22940	0.65
KD080XP0	203.2	228.6	12.7	25830	9560	64630	23870	0.694
KD090XP0	228.6	254	12.7	28900	10310	72230	25740	0.78
KD100XP0	254	279.4	12.7	31920	10980	79830	27520	0.853
KD110XP0	279.4	304.8	12.7	34980	11690	87430	29200	0.934
KD120XP0	304.8	330.2	12.7	38010	12360	95030	30890	1.02
KD140XP0	355.6	381	12.7	44090	13650	110240	34090	1.24
KD160XP0	406.4	431.8	12.7	50180	14890	125440	37160	1.41
KD180XP0	457.2	482.6	12.7	56230	16050	140640	40140	1.58
KD200XP0	508	533.4	12.7	62320	17200	155840	42980	1.75

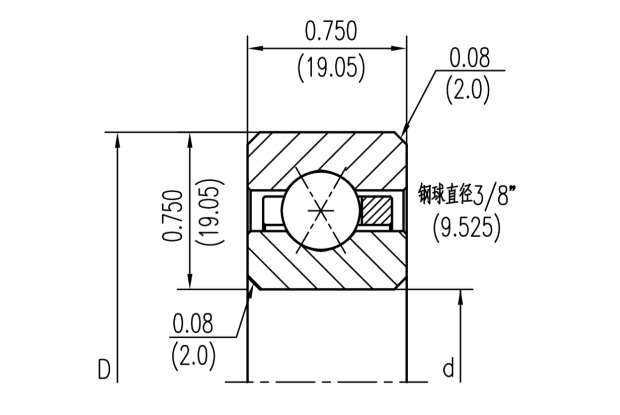

◆KF   SERIES
model	size（mm)			Load（P)				weight
	d	D	H	Cor	Cr	Coa	Ca	Kg
KF040XP0	101.6	139.7	19.05	23830	12140	59560	30360	0.875
KF042XP0	107.95	146.05	19.05	25070	12580	62720	31430	0.93
KF045XP0	114.3	152.4	19.05	26360	12980	65830	32450	0.975
KF047XP0	120.65	158.75	19.05	27600	13380	68990	33470	1.04
KF050XP0	127	165.1	19.05	28850	13780	72100	34490	1.09
KF055XP0	139.7	177.8	19.05	31340	14580	78370	36450	1.18
KF060XP0	152.4	190.5	19.05	33870	15340	84680	38360	1.24
KF065XP0	165.1	203.2	19.05	36360	16090	90950	40230	1.35
KF070XP0	177.8	215.9	19.05	38890	16850	97210	42050	1.45
KF075XP0	190.5	228.6	19.05	41380	17560	103480	43870	1.56
KF080XP0	203.2	241.3	19.05	43920	18230	109750	45610	1.66
KF090XP0	228.6	266.7	19.05	48900	19600	122280	49030	1.81
KF100XP0	254	292.1	19.05	53920	20940	134820	52320	2.02
KF110XP0	279.4	317.5	19.05	58940	22230	147350	55520	2.18
KF120XP0	304.8	342.9	19.05	63960	23470	159890	58630	2.38
KF140XP0	355.6	393.7	19.05	74010	25830	185000	64590	2.72
KF160XP0	406.4	444.5	19.05	84010	28140	210070	70320	3.22
KF180XP0	457.2	495.3	19.05	94060	30320	235140	75830	3.58
KF200XP0	508	546.1	19.05	104100	32450	260260	81120	4.04
◆KG   SERIES
model	size（mm)			Load（P)				weight
	d	D	H	Cor	Cr	Coa	Ca	Kg
KG040XP0	101.6	152.4	25.4	36490	20000	91210	50050	1.65
KG042XP0	107.95	158.75	25.4	36490	20000	91210	50050	1.75
KG045XP0	114.3	165.1	25.4	38940	20900	97300	52230	1.81
KG047XP0	120.65	171.45	25.4	41340	21740	103390	54360	1.91
KG050XP0	127	177.8	25.4	43780	22580	109440	56500	2.02
KG055XP0	139.7	190.5	25.4	46230	23430	115530	58590	2.17
KG060XP0	152.4	203.2	25.4	51070	25030	127710	62630	2.31
KG065XP0	165.1	215.9	25.4	53520	25830	133800	64590	2.47
KG070XP0	177.8	228.6	25.4	58360	27380	145930	68450	2.67
KG075XP0	190.5	241.3	25.4	60810	28140	152020	70320	2.83
KG080XP0	203.2	254	25.4	65650	29600	164200	74010	3
KG090XP0	228.6	279.4	25.4	72990	31780	182420	79430	3.3
KG100XP0	254	304.8	25.4	80280	33870	200650	84630	3.65
KG110XP0	279.4	330.2	25.4	87570	35870	218920	89700	3.96
KG120XP0	304.8	355.6	25.4	94860	37830	237140	94590	4.32
KG140XP0	355.6	406.4	25.4	109440	41600	273630	104060	4.96
KG160XP0	406.4	457.2	25.4	124060	45250	310130	113130	5.65
KG180XP0	457.2	508	25.4	138640	48720	346620	121840	6.28
KG200XP0	508	558.8	25.4	153220	52100	383070	130240	7.53
KG250XP0	635	685.8	25.4	300000	100000			8.85
KG300XP0	762	812.8	25.4	360000	107000			10.57
KG350XP0	889	939.8	25.4	420000	113000			12.3
KG400XP0	1016	1066.8	25.4
