Public angle contact ball thin wall bearings (type A)

Classification :

Keywords:

Waiting for the section thin -walled series (British system)

On the basis of the British and other section of thin -wall bearings, in order to meet the needs of public systems, we can also provide public size bearing. The thickness size is 8mm 13mm 20mm specifications. Pores from 20mm to 360mm. The structure has a radial contact (type C) four -point contact (X type) and angle contact (type A) non -standard size. Public ball axial angle contact structure can carry a large axial force. For customers with high speed, you can choose this structure, and also carry some radial force.

Public angle contact ball thin wall bearings (type A)

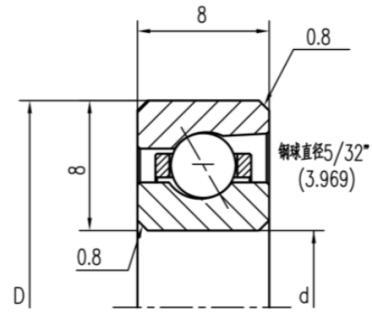

8mm series
model	Size（mm）			Radial load（N）		Axial load（N）		weight	Corresponding Model
	Inner diameter	外径	width	Static load	Dynamic load	Static load	Dynamic load	Kg	Kaydon
PK02508A	25	41	8	372	272	1073	561	0.06	K02508A
PK05008A	50	66	8	656	367	1894	819	0.08	K05008A
PK06008A	60	76	8	787	408	2273	925	0.09	K06008A
PK07008A	70	86	8	896	440	2588	1099	0.1	K07008A
PK08008A	80	96	8	1006	470	2903	1090	0.12	K08008A
PK09008A	90	106	8	1137	505	3282	1182	0.13	K09008A
PK10008A	100	116	8	1246	533	3598	1257	0.14	K10008A
PK11008A	110	126	8	1356	561	3914	1329	0.15	K11008A
PK12008A	120	136	8	1465	587	4229	1400	0.16	K12008A
PK13008A	130	146	8	1596	618	4608	1482	0.17	K13008A
PK14008A	140	156	8	1706	643	4923	1549	0.19	K14008A
PK15008A	150	166	8	1815	667	5239	1615	0.19	K15008A
PK16008A	160	176	8	1946	696	5618	1691	0.2	K16008A
PK17008A	170	186	8	2055	720	5933	1754	0.21	K17008A
PK18008A	180	196	8	2165	742	6249	1816	0.22	K18008A
PK19008A	190	206	8	2296	769	6628	1889	0.23	K19008A
PK20008A	200	216	8	2405	791	6944	1948	0.23	K20008A
PK25008A	250	266	8	2974	897	8585	2244	0.28	K25008A
PK30008A	300	316	8	3564	999	10289	2532	0.33	K30008A
PK32008A	320	336	8	3805	1039	10983	2645	0.36	K32008A
PK34008A	340	356	8	4023	1073	11614	2745	0.38	K34008A
PK36008A	360	376	8	4264	1110	12309	2854	0.4	K36008A

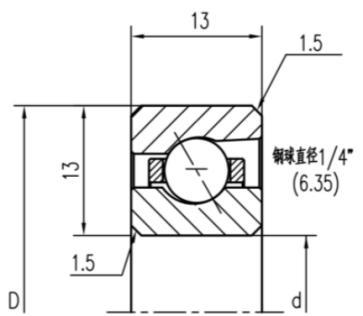

13mm series
model	Size（mm）			Radial load（N）		Axial load（N）		weight	Corresponding Model
	Inner diameter	外径	width	Static load	Dynamic load	Static load	Dynamic load	Kg	Kaydon
PK02513A	25	51	13	616	554	1778	1075	0.13	K02513A
PK05013A	50	76	13	1064	725	3070	1547	0.2	K05013A
PK06013A	60	86	13	1232	782	3555	1706	0.22	K06013A
PK07013A	70	96	13	1456	860	4201	1906	0.25	K07013A
PK08013A	80	106	13	1623	913	4686	2050	0.28	K08013A
PK09013A	90	116	13	1791	964	5171	2190	0.31	K09013A
PK10013A	100	126	13	1959	1013	5656	2324	0.34	K10013A
PK11013A	110	136	13	2127	1061	6141	2455	0.37	K11013A
PK12013A	120	146	13	2295	1108	6625	2583	0.39	K12013A
PK13013A	130	156	13	2519	1171	7272	2748	0.42	K13013A
PK14013A	140	166	13	2687	1215	7757	2869	0.45	K14013A
PK15013A	150	176	13	2855	1258	8241	2987	0.48	K15013A
PK16013A	160	186	13	3023	1301	8726	3104	0.51	K16013A
PK17013A	170	196	13	3191	1342	9211	3217	0.54	K17013A
PK18013A	180	206	13	3359	1382	9696	3329	0.56	K18013A
PK19013A	190	216	13	3527	1422	10181	3439	0.59	K19013A
PK20013A	200	226	13	3750	1476	10827	3583	0.62	K20013A
PK25013A	250	276	13	4590	1659	13251	4100	0.76	K25013A
PK30013A	300	326	13	5486	1840	15837	4618	0.9	K30013A
PK32013A	320	346	13	5822	1904	16806	4804	0.96	K32013A
PK34013A	340	366	13	6213	1978	17937	5017	1.02	K34013A
PK36013A	360	386	13	6550	2038	18907	5196	1.07	K36013A

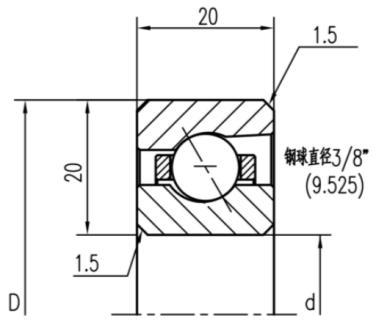

20mm series
model	Size（mm）			Radial load（N）		Axial load（N）		weight	Corresponding Model
	Inner diameter	外径	width	Static load	Dynamic load	Static load	Dynamic load	Kg	Kaydon
PK02520A	25	65	20	1134	1155	3272	2115	0.31	K02520A
PK05020A	50	90	20	1889	1460	5454	2973	0.49	K05020A
PK06020A	60	100	20	2141	1547	6181	3231	0.56	K06020A
PK07020A	70	110	20	2393	1633	6908	3480	0.62	K07020A
PK08020A	80	120	20	2645	1717	7635	3720	0.69	K08020A
PK09020A	90	130	20	3023	1851	8726	4067	0.77	K09020A
PK10020A	100	140	20	3275	1929	9453	4290	0.84	K10020A
PK11020A	110	150	20	3527	2005	10181	4507	0.91	K11020A
PK12020A	120	160	20	3778	2080	10908	4719	0.97	K12020A
PK13020A	130	170	20	4030	2154	11635	4927	1.04	K13020A
PK14020A	140	180	20	4282	2226	12362	5130	1.11	K14020A
PK15020A	150	190	20	4660	2339	13453	5427	1.19	K15020A
PK16020A	160	200	20	4912	2407	14180	5621	1.26	K16020A
PK17020A	170	210	20	5146	2474	14907	5811	1.32	K17020A
PK18020A	180	220	20	5416	2540	15634	5999	1.39	K18020A
PK19020A	190	230	20	5668	2605	16361	6183	1.46	K19020A
PK20020A	200	240	20	6045	2706	17452	6455	1.54	K20020A
PK25020A	250	290	20	7431	3041	21452	7408	1.89	K25020A
PK30020A	300	340	20	8691	3317	25088	8222	2.23	K30020A
PK32020A	320	360	20	9321	3454	26906	8615	2.37	K32020A
PK34020A	340	380	20	9824	3556	28360	8923	2.51	K34020A
PK36020A	360	400	20	10454	3685	30178	9300	2.66	K36020A
